How to Read Your Electrical Panel (Without Guessing)

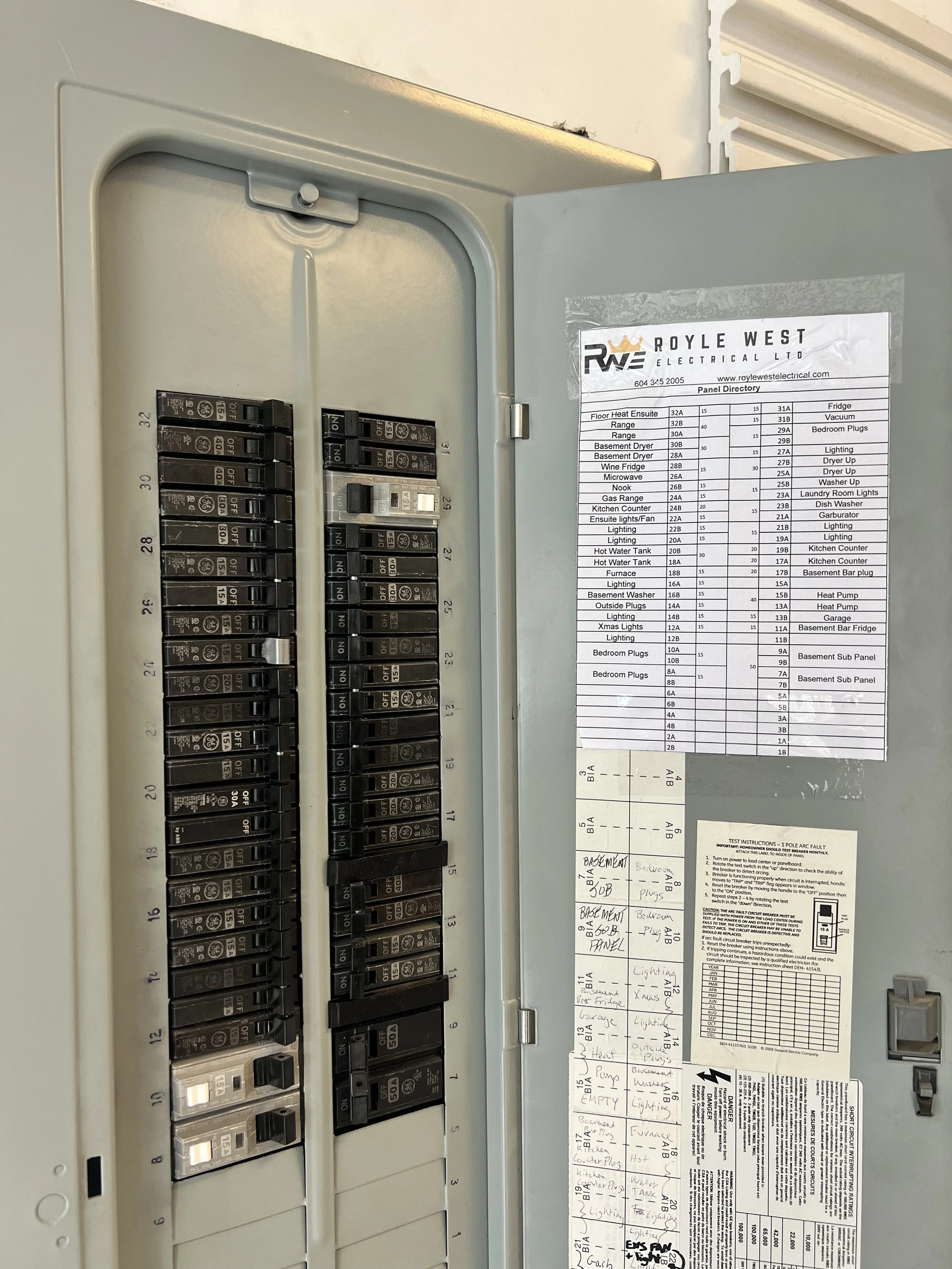

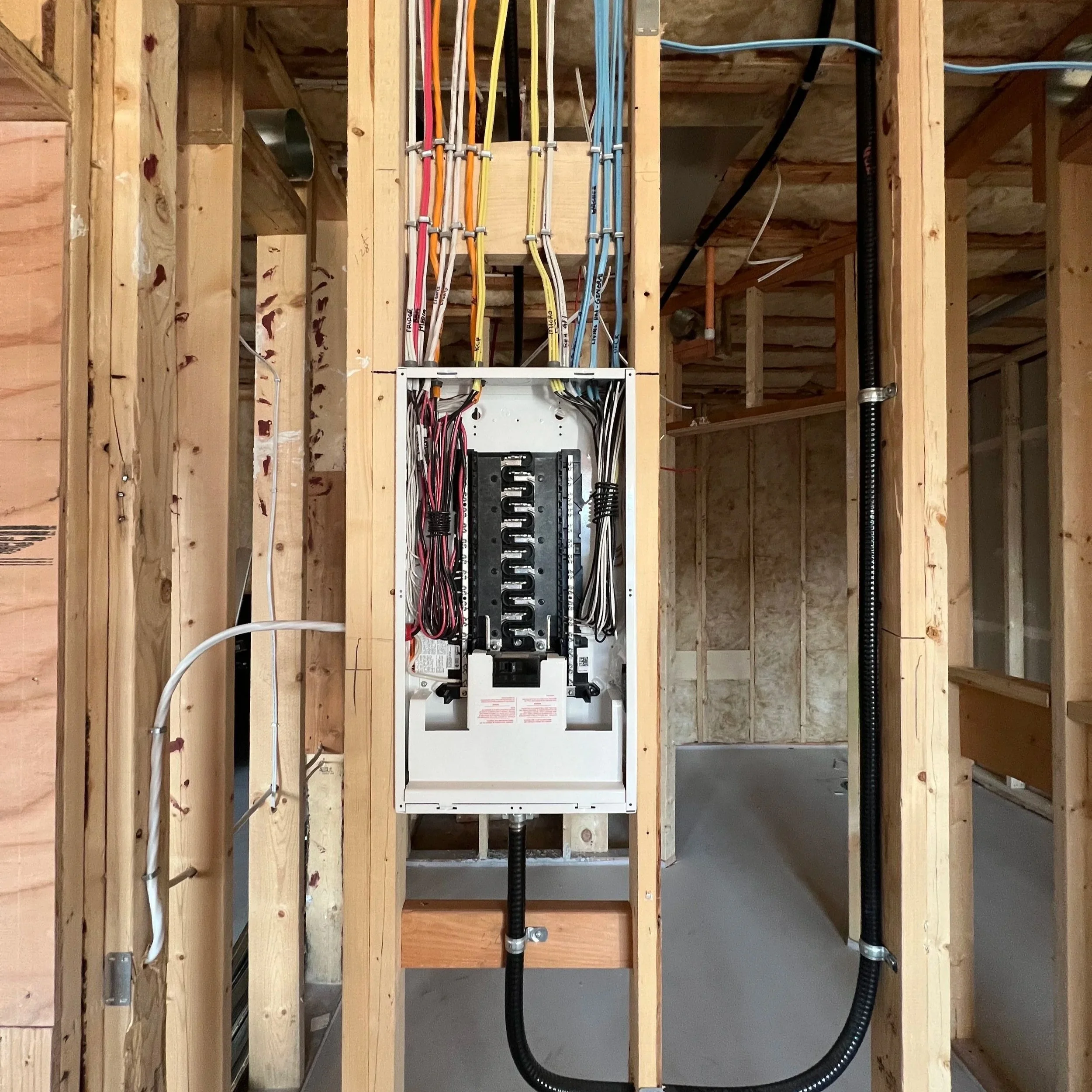

Panel Directory
Most people only open their panel door when something's already gone wrong. Here's what's actually in there, and what it can tell you before that happens.
The main breaker
Usually the largest switch, typically at the top or bottom of the panel, controlling power to the entire panel. Its amperage rating (60A, 100A, 200A) tells you your home's total electrical capacity — the single most important number if you're ever discussing an upgrade, an EV charger, or a heat pump with an electrician.
Individual circuit breakers
Each smaller switch controls a specific circuit — a room, an appliance, or a group of outlets. In a well-labeled panel, each one is marked with what it powers. In a lot of homes, especially older ones, these labels are outdated, missing, or wrong because of renovations over the years.
What a tripped breaker actually means
A breaker "trips" (flips to a middle or off position) when it detects more current flowing than the circuit is rated to handle safely — it's doing exactly what it's designed to do, protecting the wiring from overheating. An occasional trip during something like running a space heater and a hair dryer on the same circuit isn't unusual. A breaker that trips repeatedly, or trips with no obvious cause, is worth having looked at.
How to safely reset a tripped breaker
Locate the breaker sitting in the middle position (not fully "off," but not aligned with the others)
Push it firmly to the full "off" position first
Then push it back to "on"
If it trips again immediately, stop — that's a sign of an actual fault (not just an overloaded circuit), and it's not something to keep resetting repeatedly. Still not sure? Reach out to us to help you out!
You can’t see through the walls.
Have a licensed electrician do it for your piece of mind.
GFCI and AFCI breakers/outlets
If you see breakers or outlets with "test" and "reset" buttons, those are GFCI (ground-fault) or AFCI (arc-fault) protected — required by code in specific areas like bathrooms, kitchens, and bedrooms for exactly the reasons their names suggest. If one keeps tripping, it's often actually doing its job by detecting a real issue, not malfunctioning.
Signs your panel itself deserves a closer look
Rust or water staining inside or around the panel
A panel brand you don't recognize, or one flagged as a known hazard type (Federal Pacific/StabLok)
Warm to the touch anywhere on the panel exterior
Breakers that feel loose or don't stay firmly in position
No labels, or labels that clearly don't match reality anymore
When to call rather than keep guessing
If you're regularly resetting the same breaker, seeing any of the panel-level signs above, or simply don't know what half your panel's labels mean, a proper panel assessment gives you real answers instead of a guess.
